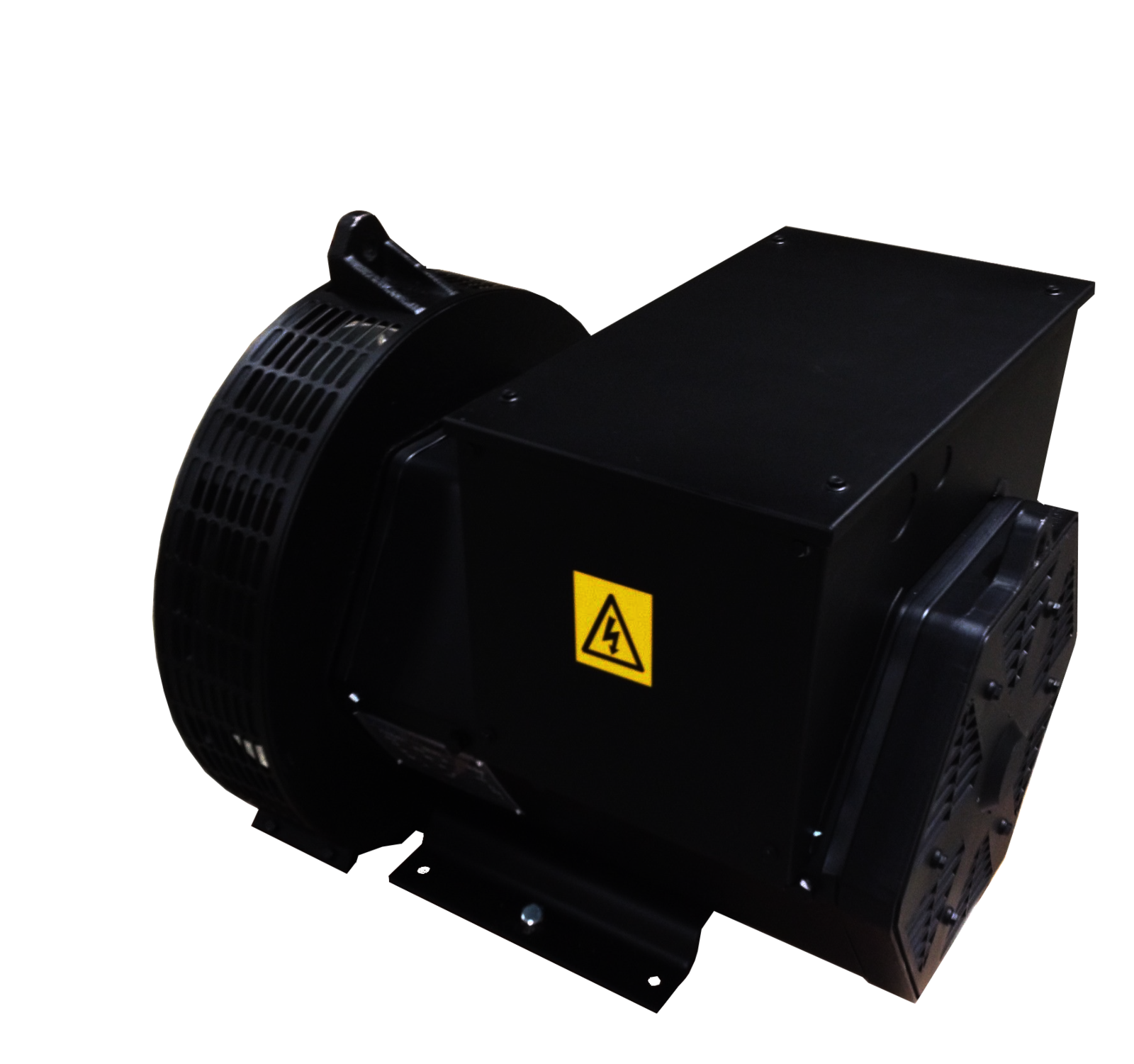

184E 21 kW Generator Head
- PDG INDUSTRIAL 184 E 21KW
- Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
- AVR AS440
- Winding 06 – 4 Wire
- Class H Insulation
- 60 HZ
- 4 Pole 1800 RPM
- 1.0 Power Factor
- Temp Rise/Ambient (125/40)
- Unit Weight: 355lbs.
- Single Bearing (direct connect through SAE bellhousing & flywheel)
- 30HP Diesel engine required for full output, may use engine with less HP but will not produce full output
- 42HP Gas engine required for full output, may use engine with less HP but will not produce full output
These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain. They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marathon, Leroy Somer, and Lima Mac.
Three Phase Wiring Options
120/240 1 Phase
120/240 3 Phase
120/208 3 Phase
277/480 3 Phase
When purchasing a 3 phase (277/480V) generator, you can opt to have it rewired to one of the above options, otherwise, 3 phase generators come standard 277/480V. If you need your 3 phase generator rewired to one of the options above, please let us know when placing your order. Please keep in mind that a 3 phase generator rewired to dedicated single phase 120/240V will lose 1/3 of its power.
